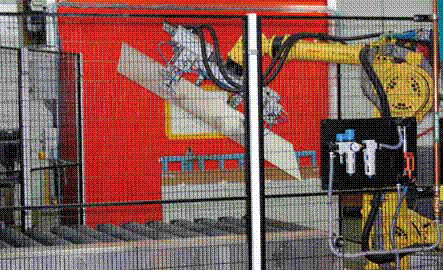

SolarWorld USA’s two main manufacturing facilities in Camarillo, CA, and Hillsboro, OR, represent the past, present, and future of crystalline-silicon solar photovoltaic manufacturing in the United States. The Southern California site, which sits in a small industrial park across from a verdant expanse of strawberry fields, was home to one of the world’s first (and at one time the largest) solar factories in the late 1970s, a historic campus that has changed corporate hands several times, from Arco Solar to Siemens Solar (1990) to Shell Solar (2001) and finally to SolarWorld (2006) over the three decades since its inception. This paper provides a look inside the factory doors.

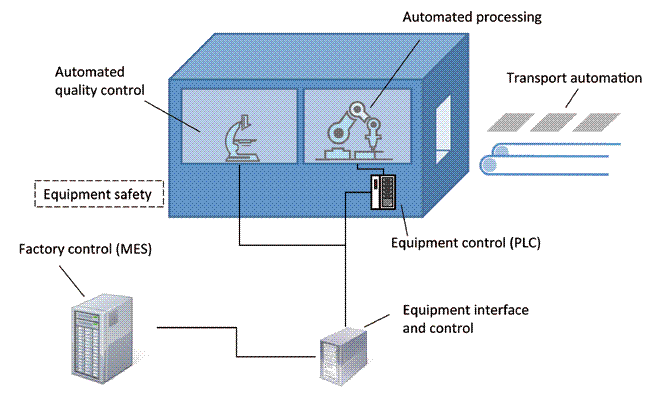

The aim of this paper is to provide an overview of the methods of automation and their application areas. Current technologies and their applications in both crystalline and thin-film technology will be the main focus, with detailing of the value chain, starting from the feedstock to the finished product. For ease of discussion, the focus is on the part of the value chain where discrete manufacturing on the substrates takes place: for thin film, the feed-in of substrates into the line, and for crystalline technologies, the focus is on wafer manufacturing.

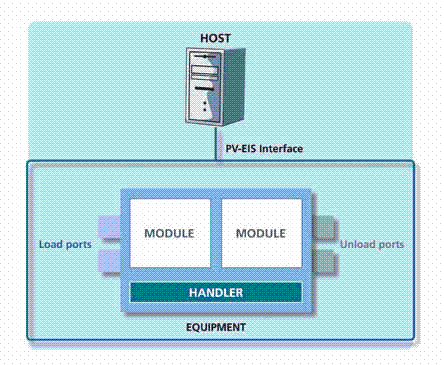

The European PV committee of EPIA/SEMI released the new PVECI standard that describes a unified IT interface for PV equipment in March 2009. If used properly, it provides the PV industry with a powerful tool for reduction of IT-related issues – especially between the factory planning and the ramp-up phase – and establishes the basis for deploying advanced factory management and control software systems. The first part of this article describes the standard in detail while the second part focuses on the anticipated benefits regarding IT integration and outlines further possibilities of a pervasive Production-IT landscape.

This review is based on primary research of global solar cell and thin-film manufacturing companies that are either currently manufacturing, expanding manufacturing, building facilities for manufacturing or progressing towards establishment of manufacturing facilities.

The PV industry has seen some incredible growth in the last five to eight years. This growth is essential in order to fulfill the challenging targets this industry has set itself to ensure it becomes an economical viable alternative energy source. A negative result of this growth, however, is the inefficient supply chain, where there is a lack of balance between demand and supply. The industry is going from one bottleneck to another. What is the impact of such inefficiencies on the supplier/manufacturer relationship? In this article, we collect information from short interviews of a number of fab managers in the wafer, cell and module domain, and try to answer this question.

Owing to the huge demand for photovoltaic products, the market is still very attractive for investments in production facilities. Nevertheless, the increasing number of competing photovoltaic manufacturers and the decrease in governmental subsidies require substantial and continuous cost reductions. Whilst existing facilities can save costs by enhancing cell efficiency, optimizing production processes or reducing material costs and other resources, for new manufacturing sites there is a great potential in making efficient use of economies of scale. This also holds true - to some extent – for expanding existing fabs. This paper presents the logistics behind and the benefits of implementing economy of scale in a PV manufacturing facility.

Investments in large photovoltaic factories can lead to high capital expenditure. To achieve a fast return on investment, it is essential to ensure a high utilization of process equipment. Optimization of photovoltaic factory performance requires a fundamental understanding of the processes as well as of the material flow and manufacturing equipment. Fraunhofer IPA has developed an approach to gather and analyze the factory data in order to detect and understand the logistic influencing factors. With this factory data, the performance of material flow systems and production equipments can be evaluated, leading to detection and elimination of inefficiencies in the manufacturing lines. The methods of acquiring and analyzing factory performance data as outlined in this article mainly focus on thin-film manufacturing lines, but are also applicable to crystalline technologies.

Crystalline wafer and thin-film photovoltaics manufacturing have experienced dramatic expansion in recent years, but future growth requires increasingly effective strategies to reduce costs and increase the competitiveness of PV power. Reducing PV manufacturing costs has been a prime focus of the industry. In the current climate, cost reduction is especially critical given the industry shakeout that many analysts are forecasting. Now more than ever, it is important to bring manufacturing capacity online quickly and cost effectively. The vast majority of commercial-scale PV manufacturing capacity is new construction (greenfield), meaning it is purpose-built on an unused piece of land; however, there are alternatives. This paper will outline opportunities for re-use of existing obsolete semiconductor fabs, and the steps required to convert from one manufacturing strand to another.

Climate change, oil shortage, green energy, energy security – these are some of the global `mega´-topics currently dominating the agenda in the news, in politics and in private lives. One of the industries that has most profited from the ever-growing consciousness about the need to de-carbonize current energy use is the photovoltaic industry. With this economic background, the photovoltaic industry has experienced impressive growth rates in the last decade and is expected to grow at 30% per year over at least the next couple of years. Since its upswing, it has become a multi-billion dollar industry and subject to speculation on stock exchanges worldwide.
